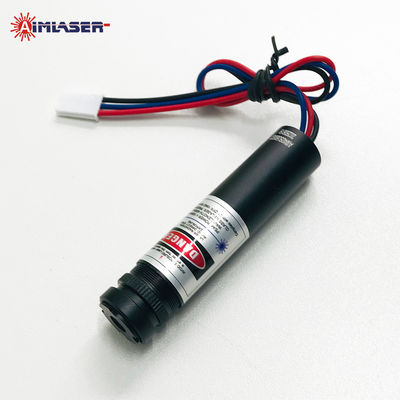

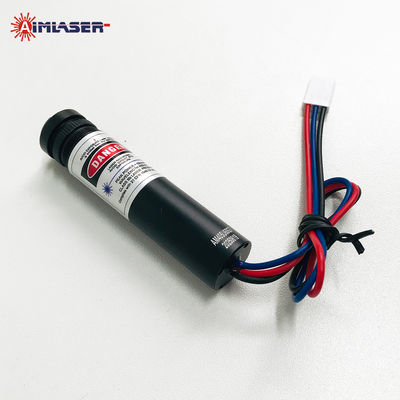

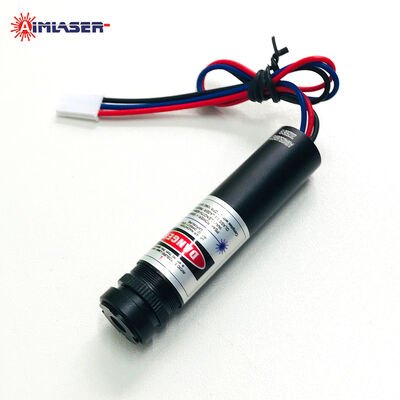

Narrow Uniform Line Laser Module With Powell Lens TTL / Analog / PWM Modulation 20um 50um 200um

  • Narrow Uniform Line Laser Module With Powell Lens TTL / Analog / PWM Modulation 20um 50um 200um
  • Narrow Uniform Line Laser Module With Powell Lens TTL / Analog / PWM Modulation 20um 50um 200um
  • Narrow Uniform Line Laser Module With Powell Lens TTL / Analog / PWM Modulation 20um 50um 200um
Plaats van herkomst China
Merknaam AIMLASER
Certificering FDA, IEC
Modelnummer AM520U20G2
Min. bestelaantal 1
Verpakking Details Antistatische zak, karton
Levertijd 10-20 dagen
Betalingscondities T/T, Western Union, Paypal
Levering vermogen 1000 stuks/maand

Contacteer me voor vrije steekproeven en coupons.

WhatsApp:0086 18588475571

wechatten: 0086 18588475571

Skypen: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Productnaam Uniforme lijnlasermodule met Powell-lens Waallengte 405 nm 450 nm 525 nm 635 nm 650 nm 780 nm 850 nm
Lijnbreedte ≤20um@60mm, ≤30um@80mm, ≤60um@150mm, ≤100um@300mm Ventilatorhoek 10°~120° (Aangepast)
Werkspanning 3-24V gelijkstroom (op maat) Materiaal van de zaak Isolatie Aluminium Zwart geanodiseerd
Levensduur 10000 uur
Markeren

TTL Analog Uniform Line Laser Module

,

Powell Lens Uniform Line Laser Module

,

PWM Uniform Line Laser Module
Laat een bericht achter
Productomschrijving

Narrow Uniform Line Laser Module with Powell Lens TTL/Analog/PWM Modulation 20um 50um 200um


Product Description


AIMLASER’s Powell Lens Line Laser Module is engineered for high-uniformity, narrow-linewidth projection in industrial and robotic vision applications. Unlike conventional cylindrical lens lasers that produce a Gaussian-distributed laser line, this module integrates a precision Powell lens to transform the beam into a uniform-intensity, fan-shaped laser line with line widths ranging from 20μm to 200μm.


The laser ensures uniform beam intensity distribution along the full length of the line, minimizing hotspots and edge dimming—making it ideal for applications requiring consistent illumination and precise edge detection. Available wavelengths: 405nm, 450nm, 488nm, 505nm, 520nm, 638nm, 660nm, 685nm, 785nm, 808nm, 830nm, and 850nm.  It supports CW, TTL modulation, and Analog modulation, providing compatibility with diverse control systems.


The Powell lens well-distributed line laser delivers excellent beam quality, high stability, and consistent brightness across the full length of the laser line—ideal for structured light scanning, robotic alignment, automated optical inspection (AOI), and 3D vision.

Narrow Uniform Line Laser Module With Powell Lens TTL / Analog / PWM Modulation 20um 50um 200um 0Narrow Uniform Line Laser Module With Powell Lens TTL / Analog / PWM Modulation 20um 50um 200um 1

Specifications


ITEMS

PARAMETERS

Model Number

Powell Lens Well Distributed Line Laser Diode Module

Wavelength

405nm, 450nm, 488nm, 505nm, 520nm, 638nm, 660nm, 685nm, 785nm, 808nm, 830nm, 850nm, and 940nm

Output Power

5mW~10W
Output Aperture Φ5.0mm

Line Width

≤20um@60mm, ≤30um@80mm, ≤50um@150mm, ≤100um@300mm

Fan Angle

10°~120°
Input Voltage 3~24.0VDC
Working Current <500mA
Driver Mode CW or Pulse(TTL, Analog Modulation, Digital Modulation)
Dimensions Φ12x35mm, Φ12x45mm, Φ16x50mm, Φ16x70mm
Divergence 0.2~0.8mrad

CDRH Class

Class I II IIIa IIIb

Circuit control

Auto Constanct Current (ACC)

Circuit Protection

Static, Surge, and Reverse Polarity Protected

Working Temperature

-10℃ to 50℃

Storage Temperature

-40℃ to 80℃

Optics

Powell Lens

Material

Aluminum Black Anodized (Insulation)

Life Time

≥10,000Hrs


Features


  • Uniform laser line via Powell lens (non-Gaussian profile)

  • Narrow line width (20μm–200μm), customizable

  • Uniform beam intensity across entire line

  • Wavelengths: 405nm ~ 1550nm

  • Supports TTL, Analog, PWM modulation

  • High stability and low noise

  • Compact design for easy integration


Applications


The Powell lens uniform distribution line laser diode modules are used in:


  • Robotic vision and intelligent automation

  • Structured light scanning and 3D profiling

  • Automated optical inspection (AOI)

  • Surface defect detection

  • Precision alignment and industrial metrology



Trade Terms


1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment: FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China


Why Choose Us


A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Strictly following ISO9001:2008 quality system.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.
