Adjustable 10W 940nm Powell Lens Uniform Line Laser for Precise Power Control Line Width 20mm 4m Operating Voltage 24V DC
Contacteer me voor vrije steekproeven en coupons.
WhatsApp:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Productnaam | Uniforme lijnlasermodule met Powell-lens | Waallengte | 940nm |
|---|---|---|---|
| Lijnbreedte | 20 mm @ 4 m | Ventilatorhoek | 120° |
| Werkspanning | 24 V gelijkstroom | Materiaal van de zaak | Isolatie Aluminium Zwart geanodiseerd |
| Levensduur | 10000 uur | ||
| Markeren | 20mm Powell Lens Uniform Line Laser,10W Powell Lens Uniform Line Laser |
||
Productomschrijving

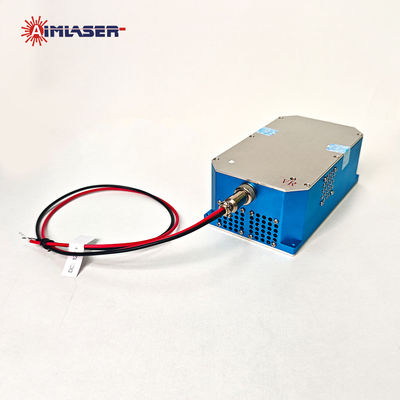

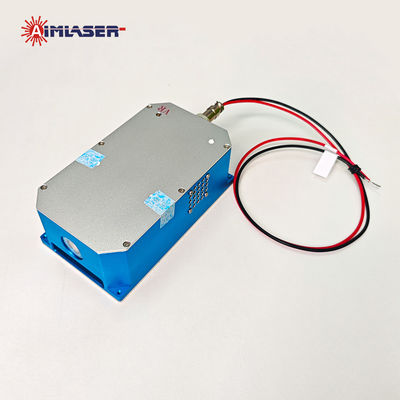

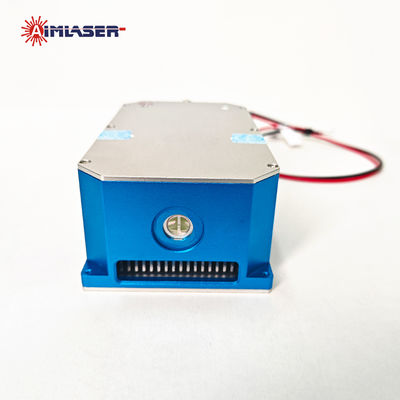

940nm 10W 20mm@4m 120° Powell Lens Uniform Line Laser with External Potentiometer to Adjust Power
Product Description
The AM940U10WG1M is a 940nm 10W uniform line laser module designed with a precision Powell lens to generate a sharply defined, uniform-intensity laser line with a 120° fan angle and a line width of ≤20mm at 4 meters. This makes it ideal for long-distance infrared alignment, industrial vision systems, and structured light projection.
Unlike conventional line lasers that use cylindrical lenses and generate a Gaussian intensity profile—brighter at the center and dimmer toward the edges—the Powell lens transforms a Gaussian spot beam into a line with uniform brightness across its entire length. This uniform distribution is critical for accurate illumination, precision measurement, and machine vision inspection, especially in automation or robotics environments.
This model also features an external potentiometer for easy power adjustment, allowing fine-tuning for specific applications. Its integrated thermal control system enhances internal heat dissipation, ensuring stable performance and extended lifetime under continuous operation.
Specifications
| Model Number | AM940U10WG1M Powell Lens Uniform Line Laser Module |
| Wavelength | 940nm |
| Output Power | 10W |
| Output Aperture | Φ10.0mm |
| Line Width | ≤20mm@4m |
| Fan Angle | 120° |
| Divergence | 0.5mrad |
| Optics | Optical Glass Powell Lens |
| Operating Current | <250mA |
| Operating Voltage | 24V DC |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constanct Current (ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 80℃ |
| Dimensions | 14x8x5.2cm |
| Case Material | Aluminum Black Anodized (Insulation) |
| Life Span | 10,000Hrs |
Features
- Powell lens for uniform-intensity laser line
- 940nm infrared, high power up to 10W
- ≤20mm line width @ 4m, 120° fan angle
- External potentiometer for power adjustment
- Integrated thermal control for stable performance
- Robust anodized aluminum housing
- ACC drive with surge and polarity protection
Applications
The Powell lens uniform distribution line laser diode modules are used in:
-
Robotic vision and intelligent automation
-
Structured light scanning and 3D profiling
-
Automated optical inspection (AOI)
-
Surface defect detection
-
Precision alignment and industrial metrology
