785nm 500mW 0.1nm Narrow Linewidth High Power Stability Fiber-Coupled Laser for Raman Spectroscopy
Contacteer me voor vrije steekproeven en coupons.
WhatsApp:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Product Name | 785nm Narrow Linewidth Laser System | Wavelength | 785nm ± 1nm |
|---|---|---|---|
| Output Power | 500mW | Linewidth | ≤0.1nm |
| Power Stability(4Hours, ±3℃) | 2% | Fiber Type | 105um |
| Markeren | 785nm fiber-coupled Raman spectroscopy laser,500mW narrow linewidth fiber laser,high stability fiber laser module |
||
Productomschrijving

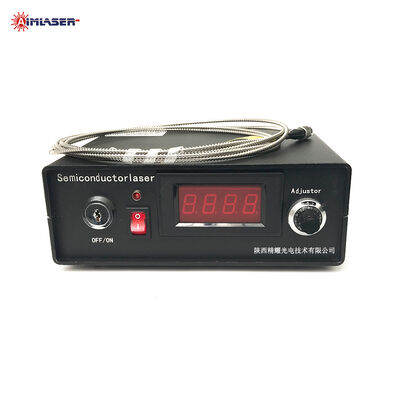

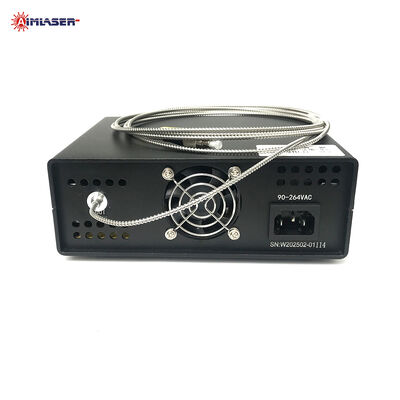

785nm 500mW 0.1nm Narrow Linewidth High Power Stability Fiber-Coupled Laser for Raman Spectroscopy
AM633MFB20X Laser System
The AM633MFB20X is a high-performance 633nm single-mode laser system for precision applications in biomedical imaging, metrology, and scientific research. Featuring exceptional beam quality, narrow spectral width, and high coherence, it is an ideal alternative to traditional helium-neon lasers or high-end semiconductor sources.
This system integrates a Fabry-Pérot laser diode with single transverse and longitudinal mode output, delivering stable power up to 20mW. The laser is fiber-coupled with armored protection, supporting multiple connector options (FC, SMA905, SC, ST). Air cooling and automatic current control (ACC) ensure long-term operational stability, while optional TTL and analog modulation offer flexible integration into advanced systems.
Features
-
633nm single-mode red laser output
-
Fiber-coupled with low beam divergence
-
Supports CW / TTL / Analog modulation
-
High stability (≤0.03 fluctuation)
-
Air-cooled, ACC control, long lifetime (>10,000h)
-
Compact design with optional FC/SMA905/SC/ST connectors
-
AC/DC power input available
Specifications
| Items | Specifications |
Test Conditions |
| Model Number | AM633MFB20X Laser System | |
| Wavelength | 633nm ± 1nm |
Tc = 25°C |
| Output Power | ≤ 20mW | |
| Laser Type | FP | |
| Wavelength Temp Drift | 0.003 | |
| Spectral Width | ≤ 1nm | Tc = 25°C |
| Fiber Core Diameter | 4μm | Tc = 25°C |
| Numerical Aperture | 0.13 | Tc = 25°C |
| Fiber Type | Single-mode | |
| Fiber Sheath | 3mm armored | |
| Fiber Length | 1m | |
| Fiber Connector | FC / SMA905 / SC / ST (optional) | |
| Operating Mode |
CW (Standard) | |
| TTL Modulation: 0~20KHz | Tc = 25±3°C | |
| Analog Modulation: 0~5V | ||
| Performance Stability | ≤0.03 (2 hours continuous operation) | |
| Cooling Method | Air-cooled | |
| Control Mode | Automatic Current Control (ACC) | |
| Lifetime | 10,000 hours | |
| Operating Temperature | +10°C⁓+40°C | |
| Storage Temperature | -20°C⁓+60°C | |
| TEC Temperature Stability | ±0.05% | |
| Warm-up Time | < 5 minutes | |
| AC (Standard) | 90V～240VAC,50～60Hz | |
| DC (Optional) | +12V | |
| Type | A-1 | |
| Dimensions | 265mm × 240mm × 112mm | |
| Warranty | 1 Year |
Applications
- Biomedical imaging, diagnostics, and therapy
-
Ophthalmic diagnostics and treatment
-
Precision material processing and micromachining
-
Display, illumination, and projection
-
Cold atom physics, interferometry, Raman spectroscopy
