Fiber Pluggable Laser Module 405–980nm 30mW 105μm Core SMA905 Connector Customizable
Contacteer me voor vrije steekproeven en coupons.
WhatsApp:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Productnaam | Vezel-insteekbare lasermodule | Waallengte | 450nm |
|---|---|---|---|
| CW Outputmacht | 3mW | Zuivel | Multimode |
| Vezelkern | 105 μm, 200 μm, 400 μm, UV Multimode Fiber beschikbaar) | Pakket | Verpakking van coaxiale laserdioden |
| Markeren | SMA905 Connector Laser Module,30mW Laser Pluggable Module,980nm Fiber Pluggable Laser Module |
||
Productomschrijving
Fiber Pluggable Laser Module 405–980nm 30mW 105μm Core SMA905 Connector Customizable

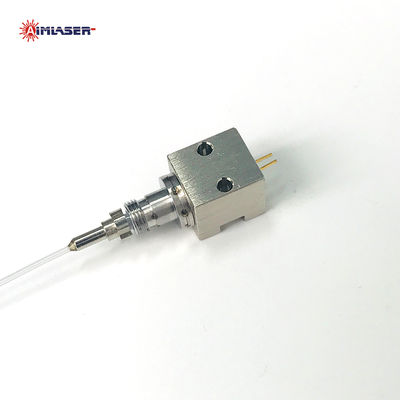

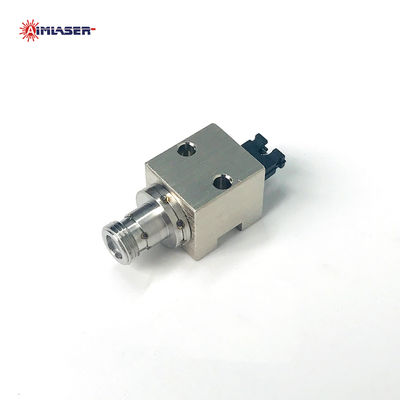

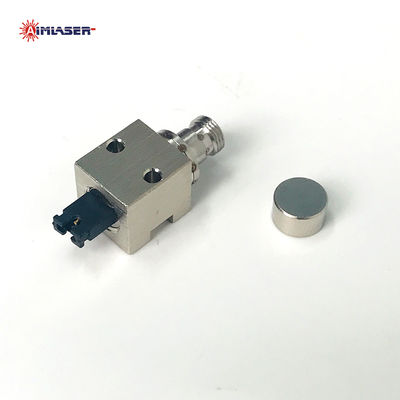

Fiber Pluggable Laser Module
AIMLASER’s pluggable fiber-coupled laser module is a compact, high-reliability light source designed for plug-and-play operation and long service life. It supports a wide wavelength range from 405nm to 980nm, with output power options from 30mW to 3500mW.
This laser adopts a coaxial packaging structure and features a detachable multimode fiber, providing excellent beam pointing stability and easy maintenance. The standard configuration includes a 105μm fiber core, 1-meter fiber length, and SMA905 connector, with optional customization for core size (105μm, 200μm, 400μm, UV fiber), fiber length, and connector types (SMA905, FC, SC, 2.5mm ferrule).
It features a multimode output beam with a spectral width of 3nm, a numerical aperture of 0.22, and a wavelength temperature coefficient of 0.05nm/°C, delivering stable optical performance under standard conditions. This makes it ideal for use in PCB imaging, CTP and LDI systems, alignment and guide light, industrial printing, as well as scientific research and education.
Features
-
Excellent beam pointing stability
-
Plug-and-play fiber interface for quick setup
-
Detachable laser module for flexible use
-
Long operational lifetime with minimal maintenance
Specifications
| Parameter | Specification |
| Wavelength Range | 405 nm – 980 nm |
| Output Power | 30 mW – 3500 mW (customizable) |
| Laser Type | FP (Fabry–Perot) |
| Beam Mode | Multimode |
| Spectral Width | ≤ 3 nm |
| Wavelength Temp. Coefficient | 0.05 nm/°C |
| Fiber Type | Multimode fiber (105 μm standard; 200/400 μm & UV optional) |
| Numerical Aperture (NA) | 0.22 |
| Connector Type | SMA905 (standard); FC, SC, 2.5mm ferrule optional |
| Fiber Length | 1 m (standard); customizable |
| Package Type | Coaxial package |
| Operating Temperature | 25 °C |
| Pluggability | Detachable fiber for plug-and-play use |
Applications
-
PCB and CTP laser imaging
-
LDI (Laser Direct Imaging) systems
-
Alignment and guide light
-
Industrial printing
-
Scientific research and education
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS, etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an, China.
Our Services
A. All products come with a one-year warranty.
B. Use original LDs from Arima, Osram, Nich, and so on to guarantee reliability.
C. Product conforms to FDA, IEC, and GB standards.
D. Strictly following ISO9001:2008 quality system.
E. Provide OEM & ODM services, support customized for your requirement.
F. Strong design and production capabilities.
