532nm 100mW DPSS Single Mode Fiber Coupled Green Laser for Scientific & Industrial Applications
Contacteer me voor vrije steekproeven en coupons.
WhatsApp:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Productnaam | 532 nm DPSS Single Mode glasvezelgekoppelde groene laser | Golflengte | 532 nm ± 1 nm |
|---|---|---|---|
| Uitgangsvermogen | 100 mW (aangepast) | Lijnbreedte | ≤1 nm (FWHM: ≤ 0,2 nm optioneel) |
| Vermogensstabiliteit (4 uur, ±3 ℃) | 3% | Vezeltype | 4um |
| Transversale Wijze | TEM00 | Werkmodus | CW |
| Markeren | 532nm green fiber laser module,100mW DPSS fiber coupled laser,single mode green laser for scientific |
||
Productomschrijving

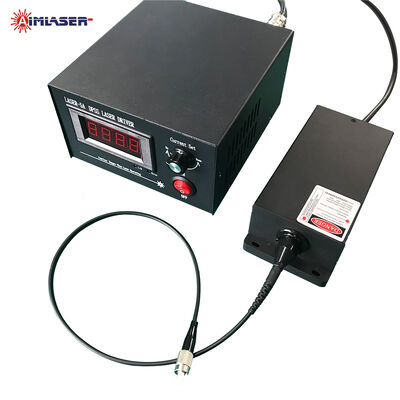

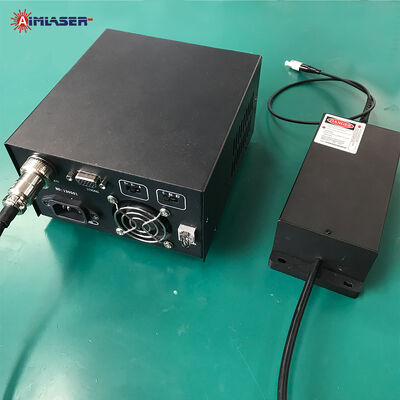

532nm 100mW DPSS Single Mode Fiber Coupled Green Laser for Scientific & Industrial Applications
AMFC-532-100-SM
AIMLASER provides 532nm DPSS Lasers with high power stability and continuously adjustable output (0 to maximum power). The system adopts an imported single-mode fiber with built-in steel mesh protection, offering high coupling efficiency, durability, and easy fiber replacement.
The high-quality pump source ensures reliable performance and long service life for continuous operation. The power supply integrates overheat and current limit protection with a built-in fuse, while the TEC and laser head fan provide effective cooling. It also supports external signal generators for high-speed TTL and analog modulation.
These lasers are ideal for fluorescence excitation, spectral analysis, cell and tumor illumination, medical diagnostics, and photoelectric detection experiments.
Specifications
| Parameter | Specifications |
| Wavelength | 532±1nm |
| Output Power | 100mW |
| Fiber Core Diameter | 4um |
| Power Stability(4hrs) | 3% |
| RMS Noise | 1% |
| Collimator Beam Size | Ø1mm@10mm |
| Connector | SMA905, FC/APC, FC/PC |
| Fiber Length | 1m |
| Fiber Sheath | 2mm Armored |
| Operating Mode | CW, TTL/Analogue Modulation |
| Power Supply | 220V AC |
| TTL modulation | 30KHz |
| Cooling | TEC |
| Operating Temperature | 25℃ |
| Warm-up time | 5min |
| Housing Material | Anodized Aluminum |
| Size | 150x60x50mm |
| Life Span | 10,000Hrs |
| Warranty | 1 Year |
Applications
-
Raman excitation for spectroscopy and analytical instruments
-
Optical measurement and precision metrology systems
-
Laser source for fluorescence and confocal microscopy
-
Material analysis and surface inspection
-
Scientific research and laboratory instrumentation
-
OEM integration for optical and photonic systems
-
Compact and fiber-based laser delivery applications
Trade Terms
1) Payment: T/T, PayPal, etc.
2) Shipment: FedEx, DHL, UPS, etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an, China.
Our Services
A. All products come with a one-year warranty.
B. Use original LDs from Arima, Osram, Nich, and so on to guarantee reliability.
C. Product conforms to FDA, IEC, and GB standards.
D. Strictly following ISO9001:2008 quality system.
E. Provide OEM & ODM services, support customized for your requirements.
F. Strong design and production capabilities.
